Configure Layer 2 Secondary Networks

Overview

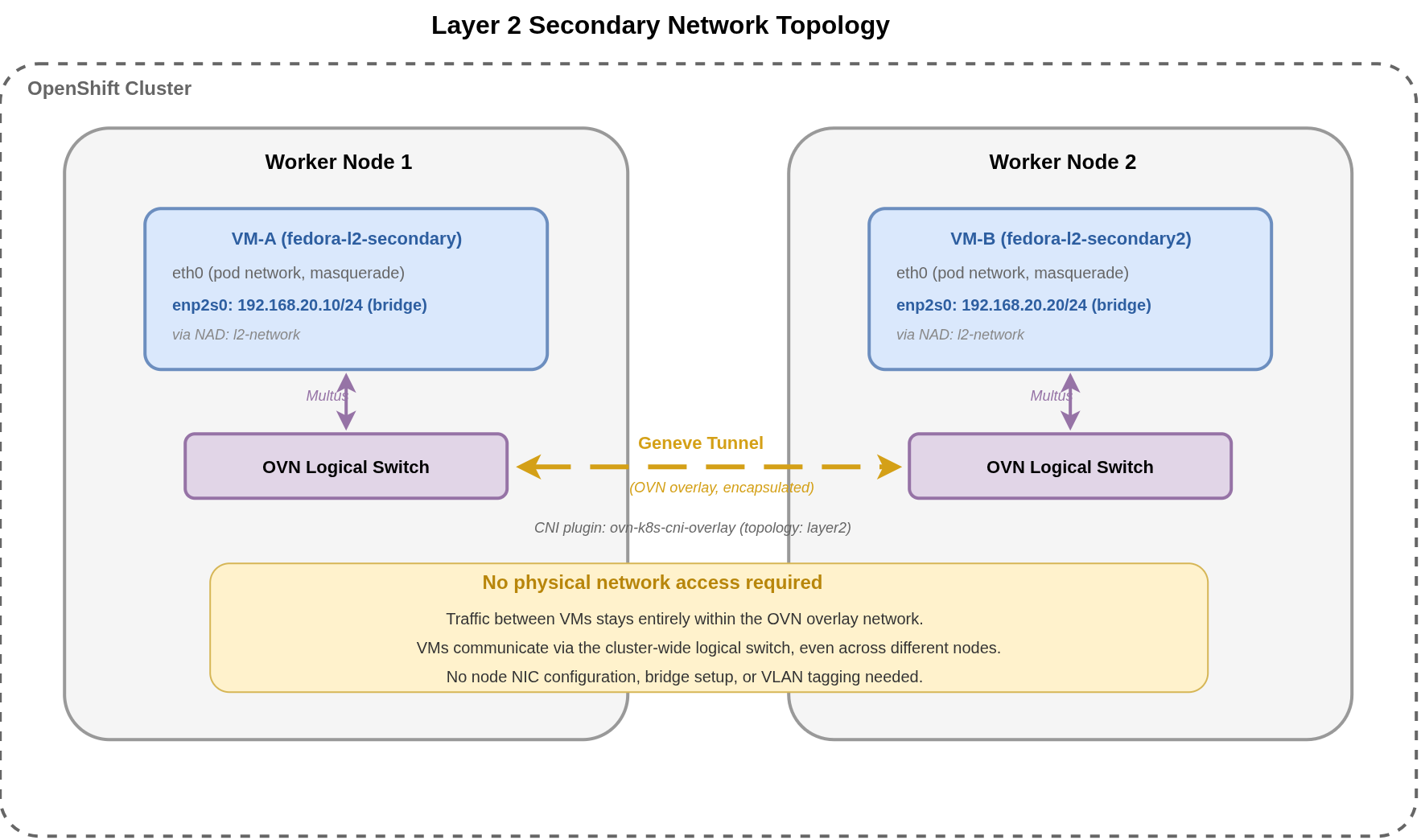

This guide shows how to configure a layer2 secondary network to connect VirtualMachines via a cluster-wide logical switch.

Doing this allows VirtualMachines to continue using the default Pod network as the primary network, which is useful when the following conditions apply:

  • You only need simple connectivity between VMs (even on different nodes) within the same namespace.

  • You don’t need network isolation between VMs within the namespace.

  • You don’t need network connectivity between VMs to span across multiple namespaces.

  • You don’t require access to the physical network interfaces of the nodes in the cluster.

  • You don’t need to route ingress connectivity to the secondary network from the internet.

  • Lastly, you don’t require access to external networks from the secondary network.

Versions tested:

OpenShift 4.20,4.21

Prerequisites

  • OpenShift 4.20+ cluster with OpenShift Virtualization operator installed

  • Cluster admin access for creating NetworkAttachmentDefinition resources

  • CLI tools installed: oc, virtctl

  • Basic understanding of Kubernetes networking concepts

Steps

The process is outlined in three steps:

Creating a Namespace

The first step, if you have not already done so, is to create a namespace to house the NetworkAttachmentDefinition defining the network, as well as the VirtualMachines you wish to attach to the network. It does not require any specific labels in this case.

You can easily create a new namespace using the oc binary, without the need to define any yaml:

oc create namespace example-l2-secondary

Now that the new namespace is created, it’s best to switch your current kube context (cluster and namespace that you’re currently working in) to the new namespace or project (in OpenShift terms).

oc project example-l2-secondary

With the namespace created, and your current context set, proceed with Creating a NetworkAttachmentDefinition.

Creating a Network Attachment Definition

The second step is to create the NetworkAttachmentDefinition which will define the layer2 network within the namespace.

Create a new file named l2-network.nad.yaml and copy/paste the following yaml definition as the file contents, then save and close the editor:

apiVersion: k8s.cni.cncf.io/v1
kind: NetworkAttachmentDefinition
metadata:
  name: l2-network
  namespace: example-l2-secondary
spec:
  config: |-
    {
            "cniVersion": "0.3.1",
            "name": "l2-network",
            "type": "ovn-k8s-cni-overlay",
            "topology":"layer2",
            "mtu": 1400,
            "netAttachDefName": "example-l2-secondary/l2-network"
    }

Apply the NetworkAttachmentDefinition into the pre-defined namespace example-l2-secondary on the OpenShift cluster using oc apply:

oc apply -f l2-network.nad.yaml

Check to make sure that the NetworkAttachmentDefinition creation was successful. The l2-network must exist in the example-l2-secondary namespace before proceeding:

oc get net-attach-def l2-network -n example-l2-secondary

With the l2-network created, proceed with Attaching VirtualMachines to the network.

Attaching VirtualMachines

The next step is to create your VirtualMachines and attach them to the layer2 network that was just created. This is done in typical OpenShift (Kubernetes) fashion by creating a VirtualMachine API object and applying it to the cluster.

In this section, we’ll create two new VMs which will both be attached to the secondary l2-network.

Creating the First VirtualMachine

Below is the yaml definition for the first VirtualMachine (the key fields are explained further below). Copy and paste content into a new file named fedora-l2-secondary.vm.yaml:

The cloud-init password in this example is for demo purposes only. Always use a strong, unique password or SSH key authentication in production environments.
apiVersion: kubevirt.io/v1
kind: VirtualMachine
metadata:
  name: fedora-l2-secondary
  labels:
    app: fedora-l2-secondary
spec:
  dataVolumeTemplates:
  - metadata:
      name: fedora-l2-secondary-root
    spec:
      sourceRef:
        kind: DataSource
        name: fedora
        namespace: openshift-virtualization-os-images
      storage:
        resources:
          requests:
            storage: 30Gi
  instancetype:
    name: u1.large
  preference:
    name: fedora
  runStrategy: Always
  template:
    metadata:
      labels:
        app: fedora-l2-secondary
    spec:
      domain:
        devices:
          interfaces:
          - name: default
            masquerade: {}
          - name: secondary
            bridge: {}
        resources: {}
      terminationGracePeriodSeconds: 180
      networks:
      - name: default
        pod: {}
      - name: secondary
        multus:
          networkName: l2-network
      volumes:
      - name: fedora-l2-secondary-root
        dataVolume:
          name: fedora-l2-secondary-root
      - name: cloudinitdisk
        cloudInitNoCloud:
          userData: |
            #cloud-config
            user: fedora
            password: fedora
            chpasswd:
              expire: False
          networkData: |
            version: 2
            ethernets:
              enp2s0:
                addresses:
                - 192.168.20.10/24
From the above VM example

Regarding the fields in the above example (relative to spec.template.spec):

domain.devices.interfaces - accepts a list of interface definitions, each with two fields defined:

  • name - contains the name for the interface. Here we named it secondary since that’s the name of the associated network under networks.

  • bridge or masquerade - the secondary interface connects to the hypervisor pod’s interface using a bridge. Either field accepts an empty object ({}).

networks - this is where to list networks used to connect interfaces, as with interfaces there are two fields for each network:

  • name - we aptly chose secondary as the network name to differentiate it from the default network.

  • pod or multus - to select a non-default network, choose multus as the field name. The default pod network accepts an empty object, but multus requires a networkName subfield.

    • networkName (required for multus) - the name of the network defined in the NetworkAttachmentDefinition created previously, named l2-network.

volumes - there are two volumes defined, the fedora-l2-secondary-root disk and the cloudinitdisk used to pass VM configuration data such as user credentials and network addresses.

You can create a new VirtualMachine on the OpenShift cluster (in the current namespace, example-l2-secondary) using oc create:

oc create -f fedora-l2-secondary.vm.yaml

Check that the fedora-l2-secondary VM is up and running in the example-l2-secondary namespace before proceeding. You may have to run the command a few times while in the Provisioning state:

oc get vm fedora-l2-secondary -n example-l2-secondary
Troubleshooting

If the VirtualMachine seems stuck in the Pending state, something is preventing the VM from scheduling. That could be any of these things:

  • There is an issue provisioning the underlying DataVolume on the cluster (such as a lack of disk space).

  • The l2-network NetworkAttachmentDefinition does not exist.

  • There is a resource limitation in the OpenShift cluster. This could be a lack of memory or vCPUs preventing the VM from being scheduled.

To try and find the source of the issue, use oc describe or oc get -o yaml on one of the lower level resources (such as the vmi, datavolume or pvc). The error message should be found in the Events (oc describe) or Status (oc get -o yaml) of the culprit resource.

Creating a Second VirtualMachine

Before we’re able to test, a second VM is required to establish connectivity across the secondary network.

Below is the yaml source definition for the second VirtualMachine. Save the provided content into a file named fedora-l2-secondary2.vm.yaml. Note that the only changes from the first VM are the name, IP address and root volume name.

apiVersion: kubevirt.io/v1
kind: VirtualMachine
metadata:
  name: fedora-l2-secondary2
  labels:
    app: fedora-l2-secondary2
spec:
  dataVolumeTemplates:
  - metadata:
      name: fedora-l2-secondary2-root
    spec:
      sourceRef:
        kind: DataSource
        name: fedora
        namespace: openshift-virtualization-os-images
      storage:
        resources:
          requests:
            storage: 30Gi
  instancetype:
    name: u1.large
  preference:
    name: fedora
  runStrategy: Always
  template:
    metadata:
      labels:
        app: fedora-l2-secondary2
    spec:
      domain:
        devices:
          interfaces:
          - name: default
            masquerade: {}
          - name: secondary
            bridge: {}
        resources: {}
      terminationGracePeriodSeconds: 180
      networks:
      - name: default
        pod: {}
      - name: secondary
        multus:
          networkName: l2-network
      volumes:
      - name: fedora-l2-secondary2-root
        dataVolume:
          name: fedora-l2-secondary2-root
      - name: cloudinitdisk
        cloudInitNoCloud:
          userData: |
            #cloud-config
            user: fedora
            password: fedora
            chpasswd:
              expire: False
          networkData: |
            version: 2
            ethernets:
              enp2s0:
                addresses:
                - 192.168.20.20/24

Apply the VirtualMachine to the current namespace on the OpenShift cluster:

oc apply -f fedora-l2-secondary2.vm.yaml

Check that the second VM named fedora-l2-secondary2 is up and running in the example-l2-secondary namespace. Both VirtualMachines should be running prior to testing:

oc get vm fedora-l2-secondary2 -n example-l2-secondary

Testing the Secondary Network

Since the secondary network is layer2 only, and exists purely as a virtual network within the cluster and namespace, we must test connectivity from one VM to another.

The following resources must exist in the example-l2-secondary namespace before you can proceed with testing:

  • NetworkAttachmentDefinition: l2-network

  • VirtualMachine: fedora-l2-secondary (secondary NIC IP address: 192.168.20.10)

  • VirtualMachine: fedora-l2-secondary2 (secondary NIC IP address: 192.168.20.20)

The simplest way to test is by connecting to the console on one VM (or optionally, both VMs) and pinging the other.

Access the console of the first VirtualMachine using the virtctl command and login as user:`fedora` with password:`fedora` (hit ENTER if no login prompt appears):

virtctl console fedora-l2-secondary

Check the IP address of the VirtualMachine. The following command should return a static address of 192.168.20.10 for the enp2s0 interface:

ip addr show

Ping the fedora-l2-secondary2 (IP address: 192.168.20.20) VM from the console of the first VM. If you see replies, then the secondary network is operational (hit CTRL+C to cancel the ping):

ping 192.168.20.20

To exit the VM console, hit CTRL+].

To cleanup all of the resources from this exercise, simply switch to a different namespace and delete the example-l2-secondary namespace:

oc project default
oc delete namespace example-l2-secondary

Summary

In this tutorial, you learned:

  • How to create a NetworkAttachmentDefinition with layer2 topology using the ovn-k8s-cni-overlay CNI plugin

  • How to configure VirtualMachines with both a primary masquerade interface and a secondary bridge interface

  • How to assign static IP addresses on the secondary network using cloud-init networkData

  • How to verify Layer 2 connectivity between VMs on the same OVN-managed logical switch

  • When to use Layer 2 secondary networks versus other networking options like Linux bridges or localnet
